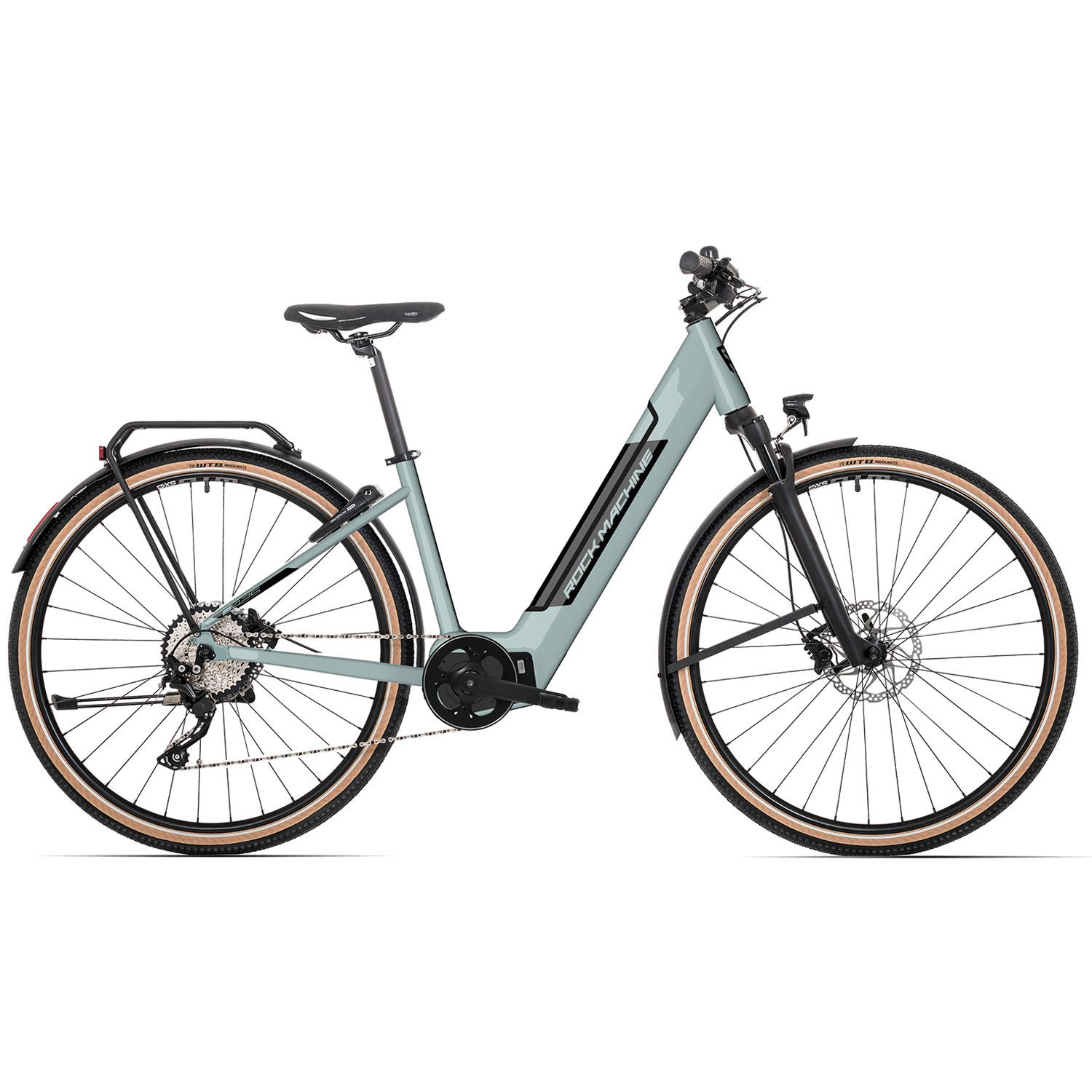

A sleek new unisex mono frame with a low mounting height, designed for comfortable cycle track rides and urban commuting. The machine is supplied with a Sport Drive mid-motor, a simple Grip display, and a fully integrated battery requiring 7 hours to recharge. The 90 Nm drive unit and the 500 Wh battery allow the bike to cover up to 100 km after one charging cycle. The model offers full touring and urban ride equipment: a cargo rack, kickstand, lock, lightweight mudguards, and lights fed by the bike’s battery. The main comfort components include, for example, a lockout coil fork and WTB plus ONE1 accessories.
MONO tube Unisex frame with Fun Ride Geometry to increase Comfort&Control and to make uphills and downhills easier
Sport Drive motor with 90 Nm, battery 500 Wh and range up to 100 km
Shimano Altus, 1x9 42 x 11-36, SHIMANO disc brakes
WTB Riddler 29x1.75" tires with Reflective Tape
Sport Drive MD250S
MD250s middle motor: fully integrated into the Sport drive frame, with truly exceptional parameters offers maximal power of 500 W, the efficiency of more than 80%. It is a clear choice for use in mountain e-bikes. You will appreciate not only the performance but also its exceptionally quiet operation. Even in the steepest terrain, it will help you in a very significant way. The engine offers high quality, yet affordable choice among other middle engines on the market.
FRAMESET
Colour: Gloss Light Slate/Black/Silver
Frame: Alloy Al-6061 T6 Custom MONO tubing, Smooth Welding, Fun Ride Geometry, Unisex 29er, Sport Drive MID Motor, 2nd Gen. Battery Integration, OLD 135x9, Disc Brake Post Mount, Fender&Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing
Headset: FSA No.10 Semi-Cartrige, 1-1/8"
Fork: ZOOM 187D AMS HLO, 1-1/8", Coil, QR Type, Lockout, 65mm travel
Sizes: 17.0"(M), 19.0"(L), 21.0"(XL)
E-BIKE
E-Bike System: SPORT DRIVE - Middle Drive Unit
Drive unit: SPORT DRIVE MD250S, 36V, 250W, 85Nm, torque/rotation sensor
Battery: SPORT DRIVE, 36V, 500Wh, in-frame mount
Display: SPORT DRIVE Grip display
Charger: SPORT DRIVE standard charger, 36V/2A, charging time up to 7,5 hours
Max Support Speed: 25 km/h
Charge Cycles: 1000/60% of original capacity
Distance Range: 100 km (ECO mode)
DRIVETRAIN
Gears:1x9
Shifter: SHIMANO ALTUS SL-M2010-9R RapidFire Plus, 9-speed
Rear Derailleur: SSHIMANO ALTUS RD-M2000 Shadow
Crankset: Wheel Top ED2L, 42T
Cassette SHIMANO CS-HG200-9, 11-36T
Chain: KMC e9S
Pedals: Marwi SP-827 SANDBLOCK Non/slip pedal
Components
Handlebar:ONE1 Alloy, MTB AL-325BT, 6 degree upsweep, 9 degree backsweep, 25mm rise, 720mm, 31.8mm
Stem:ONE1 Sport MAS-D61808 Alloy, 31.8xE65mm, +15 degrees
Grips: Velo VLG-1879D2, Ergo Grip
Brakes: SHIMANO BL-MT200/BR-MT200, 160/160 rotor, hydraulic disc brake
Saddle: WTB Volt Sport
Seatpost: ONE1 Alloy, SP C207, 30.9x350mm
Wheels
Front Hub: SHIMANO TX HB-TX505, 32H, CENTER LOCK, QR Type
Rear Hub: SHIMANO TX FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
Rims: WTB SX19, 32H
Tyres: WTB Riddler Comp, 29x1.75", Reflective Tape
Spokes: Sapim Galvanized Black
Weight
24.8 Kg (M size)
Please Note: Bike Specification May Be Subject To Change Without Notice
