Mountain e-bike with a Bosch ActiveLine Plus motor with 250W power, a maximum torque of 50 Nm and a fully integrated battery with a capacity of 500 Wh, which ensures a range of up to 100 km. We built the eXC on a comfortable aluminum alloy sports frame in a comfortable geometry for long days in the saddle. Superior chose the Shimano Alivio shifter for easy control and trouble-free functionality. The Suntour suspension fork takes care of comfort and the ONE1 components offer enough comfort and confidence when controlling the bike.
Base Info
E-System: BOSCH ACTIVE LINE PLUS; Battery PowerTube 625Wh
Distance: 140km
Max Torque: 50Nm/270%
Weight: 24kg
E-Bike Parts
Motor: BOSCH Active Line Plus, 50Nm
Charger: BOSCH 2A
Battery: BOSCH PowerTube, 625Wh
Display: BOSCH Purion
Frameset

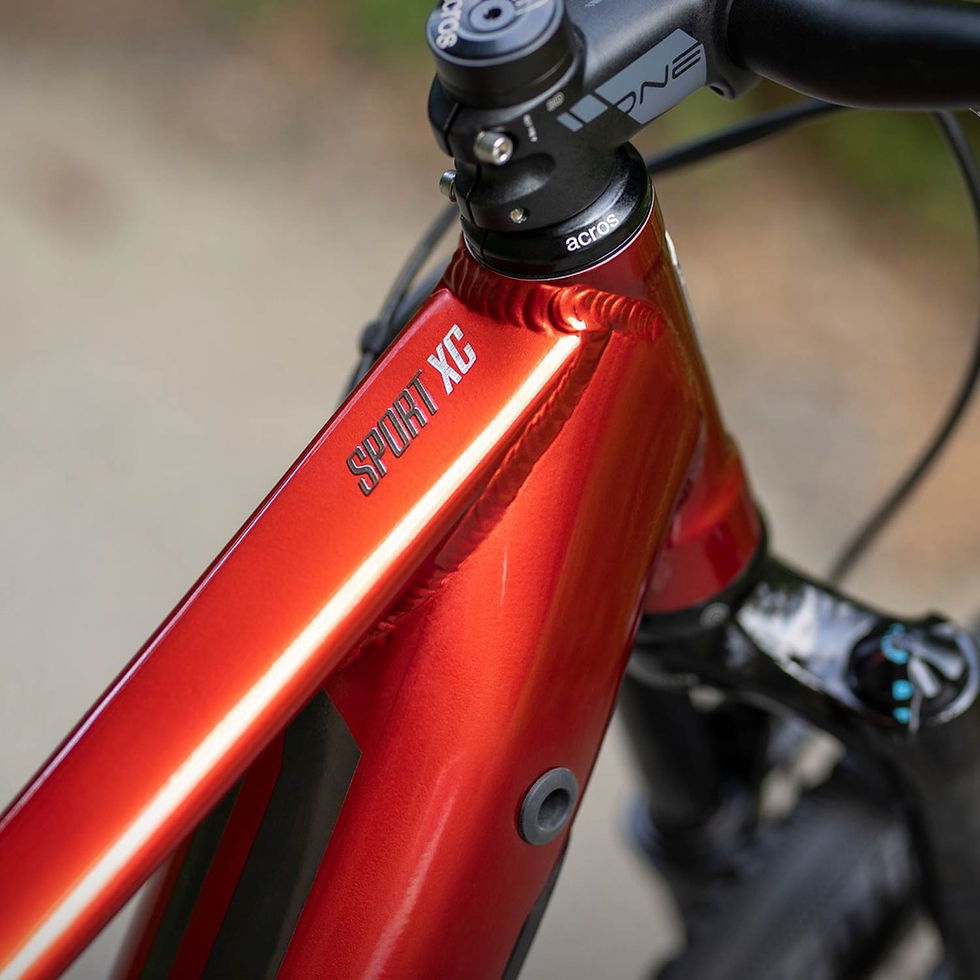

Frame: Alu 6061 T6, Sport eMTB Geometry, Smooth Welding, Bosch system Powertube 625Wh battery ready, Inner Cable Routing
Suspension Fork: RST Blaze, 1-1/8", 100mm travel
Headset: ACROS AZX-254, ZS44/28.6 - EC49/30; BlockLock
Drivetrain
Shifters: SHIMANO ALIVIO SL-M3100-R, RAPIDFIRE Plus, 9-speed
Rear Derailleur: SHIMANO ALIVIO RD-M3100, Shadow Design
Crankset: ONE Sport, Alloy
Chainring: ONE Sport, 38T
Cassette: SHIMANO CS-HG200, 9-speed, 11-36T
Chain:KMC e9S
Braking system
Brakes: SHIMANO MT200, hydraulic disc brake
Rotors: SHIMANO SM-RT10, 180mm
Wheels
Front Hub: SHIMANO HB-TX505, 32H, CL, M9X100mm, QR Type
Rear Hub: SHIMANO FH-TX505-8, 32H, CL, M10x135mm, QR Type
Rims: STARS J30D, Disc, 32H
Tyres: Schwalbe Hurricane Performance, 29x2.25, ADDIX
Spokes: SAPIM Galvanized Black
Cockpit
Stem: ONE Sport, Alloy, 31.8mm, -8 Degrees
Handlebar: ONE Alloy, 25mm rise, 31.8mm
Grips: ONE Sport Ergo, Lock-On
Parts
Saddle: Selle Royal Vivo
Seatpost: ONE Sport, Alloy, 30.9mm
Seatpost Clamp: ONE CC-617, 34.9mm, with Quick Release level, Black
Pedals: Marwi SP-610
Please Note: Bike Specification May Be Subject To Change Without Notice
